- Useful test devices for the rapid determination of the flow time of paints, varnishes and similar liquids
- Easy to handle
- Easy to clean
Click here to request a quotation for this product. If possible, please indicate the desired version.
Versions
| Picture | Version | Cup | with fixed jet No.* | Standard |
|---|---|---|---|---|
 |

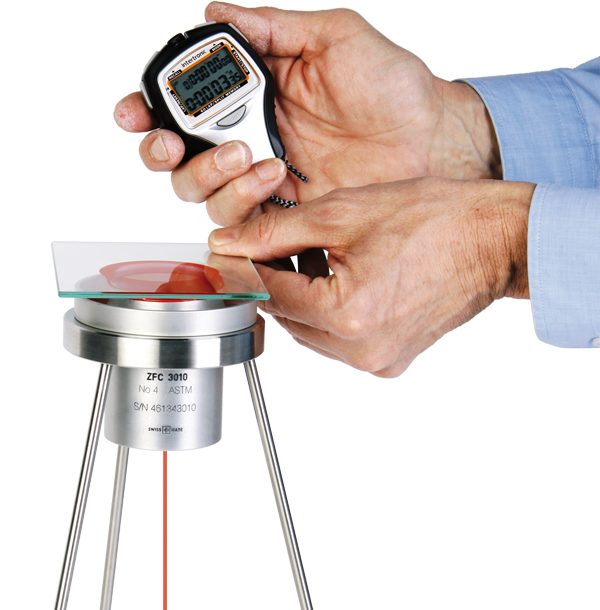

ZFC 3010 | Flow Cup (Ford) Price request |
1, 2, 3, 4 or 5 | ASTM D1200 |
 |
ZFC 3011 | Flow Cup Price request |
1, 2, 3, 4, 5, 6, 7 or 8 | ** |
 |
ZFC 3012 | Immersion Flow Cup Price request |
1, 2, 3, 4, 5, 6, 7 or 8 | *** |
 |
ZFC 3013 | Flow Cup Price request |
3, 4, 5 or 6 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
 |
ZFC 3014 | Immersion Flow Cup Price request |
3, 4, 5 or 6 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
 |
ZFC 3015 | Immersion Flow Cup (Ford) Price request |
1, 2, 3, 4 or 5 | ASTM D1200 |
* Please specify jet number when ordering
**Jet No. 4 in accordance with DIN 53211 (withdrawn 1996)
***Based on DIN 53211 (withdrawn 1996)
Standard delivery
ZFC 3010, 3011 and 3013:• 1 flow cup
• 1 instruction manual
• 1 certificate of manufacturer
• 1 storage box
ZFC 3012, 3014 and 3015:
• 1 immersion flow cup
• 1 instruction manual
• 1 certificate of manufacturer
• 1 storage box
Options
| Option | Article No. | Description |
|---|---|---|
 |
ZTJ 3020 | Temperature Control Jacket |
 |
ACC072 | three-foot stand completely made of stainless steel, levellable through adjustable feet, with spirit level, height of 260 mm (10.24“) |
| ACC050 | insertion thermometer -50° up to +600°C (for fluids) | |
 |
ACC152 | glass plate |
 |
ACC593 | calibration and certification of a flow cup (incl. certificate of calibration) |
Technical specification
| Material cup | anodised aluminium |
| Material jet | stainless steel |
| Warranty | 2 years |
| Version | Standards |
|---|---|
| ZFC 3010 | ASTM D1200 |
| ZFC 3011 | jet No. 4 in accordance with DIN 53211 (withdrawn 1996) |
| ZFC 3012 | based on DIN 53211 (withdrawn 1996) |
| ZFC 3013 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
| ZFC 3014 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
| ZFC 3015 | ASTM D1200 |
Standards
| Version | Standards |
|---|---|
| ZFC 3010 | ASTM D1200 |
| ZFC 3011 | jet No. 4 in accordance with DIN 53211 (withdrawn 1996) |
| ZFC 3012 | based on DIN 53211 (withdrawn 1996) |
| ZFC 3013 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
| ZFC 3014 | ASTM D5125, ISO 2431, BS 3900-A6 (withdrawn 1991) |
| ZFC 3015 | ASTM D1200 |
