ZAA 2600 Automatic Film Applicator

Automatic laboratory equipment with capacitive touchscreen for accurate and reproducible application of coating materials, adhesives and similar products with almost all film applicators
Thanks to its modular construction, the automatic universal unit can be equipped with different kits for carrying out also scrub resistance, washability, crocking as well as scratch and mar resistance tests
Version with isolation for use with heatable vacuum plates or heating plates. Alternatively you can also upgrade the standard unit at a later date with the optional modification set
Time saving thanks to storage of various application profile settings such as application length and drawing speed
Adjustable application area with moveable start and stop positions
Reproducible, operator independent results
Easy to use multi-language menu guidance

Click here to request a quotation for this product. If possible, please indicate the desired version.

Versions

Versions	Article No.	Description
	2600.A	ZAA 2600 Automatic Film Applicator with drawing speed 1 - 500 mm/s (0.04 - 19.69“/s), stepless adjustable Price request
	2600.HA	ZAA 2600 Automatic Film Applicator for heatable plates with drawing speed 1 - 500 mm/s (0.04 - 19.69“/s), stepless adjustable Price request

Standard delivery
	1 automatic film applicator with touchscreen
	1 reversible, double sided glass plate / printing blanket
	1 polyester mat
	1 spirit level
	1 weight lifter ACC1436 (set of 2)
	1 instruction manual
	1 certificate of manufacturer

Feature

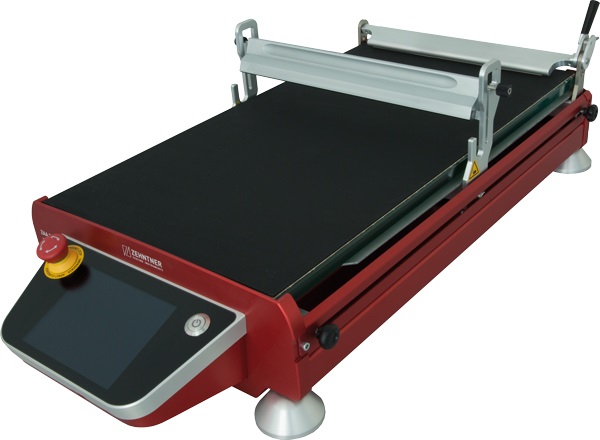

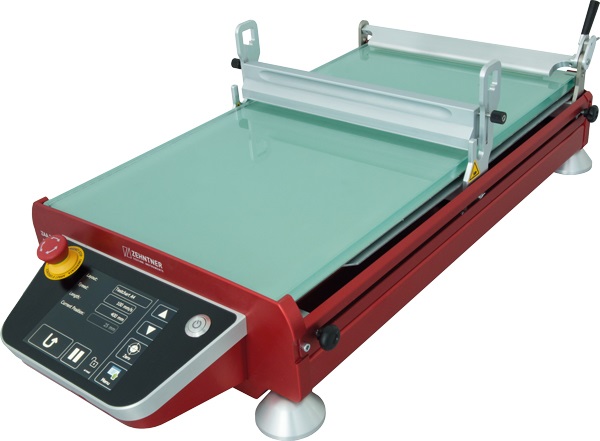

	Double sided glass plate for dual-purpose operation: one side with printing blanket for wire-bar applicators and profile rods, on the other side glass surface for other applications

Option	Article No.	Description
	ACC1284	modification set „Heatable Application“
	ACC1285	modification set „Crockmeter“
	ACC1286	modification set „Scrub Tester“
	ACC121	Precision-Vacuumplate with a series of holes of 1 mm (0.04")
	ACC211	Precision-Vacuumplate with a series of holes of 0.5 mm (0.02")
	ACC039	vacuum pump 230 V with hose
	ACC122	vacuum pump 115 V with hose
	ZTC 2200	Test Charts
	ZUA 2000	Universal Applicator
	ZAF 2010	4-sided Applicator Frame
	ZFR 2040	4-sided Applicator
	ZWA 2121	Wasag Applicator
	ACC378	Profile Rod
	ACC586	Wire-bar Applicator

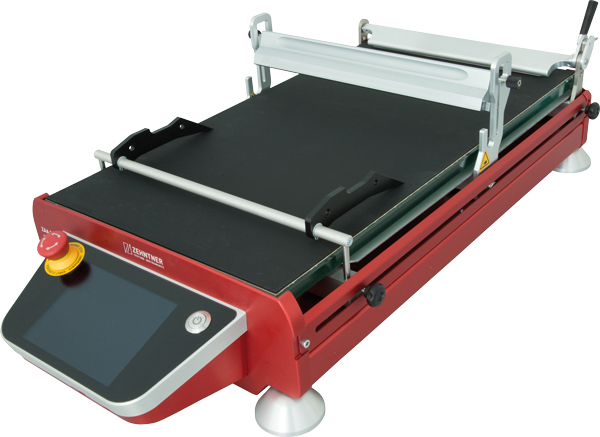

	ACC1283	collecting device for wire bar applicators and profile rods
Options to „Heatable Application“ (2600.HA or modification set ACC1284):
	ACC1477.230V	heating plate set 230 V, heatable up to 150°C
	ACC1477.115V	heating plate set 115 V, heatable up to 150°C
	ACC1505.230V	Precision-Vacuumplate set 230 V with a series of holes of 1 mm (0.04") drilling, heatable up to 150°C
	ACC1505.115V	Precision-Vacuumplate set 115 V with a series of holes of 1 mm (0.04") drilling, heatable up to 150°C
	ACC1509.230V	Precision-Vacuumplate set 230 V with a series of holes of 0.5 mm (0.02") drilling, heatable up to 150°C
	ACC1509.115V	Precision-Vacuumplate set 115 V with a series of holes of 0.5 mm (0.02") drilling, heatable up to 150°C
	ACC1441	collecting device for wire bar applicators and profile rods

Feature
	Option: vacuumplate for substrates; the vacuum created fixes the substrate in place evenly

Drawing speed	1 - 500 mm/s (0.04“ - 19.69“/s), stepless adjustable
Touchscreen display	5.7“ colour TFT (LCD), LED backlight, VGA resolution
Material housing	anodised aluminium
Material glass plate	glass
Material printing blanket	rubber coated cotton
Dimensions (LxWxH)	2600.A: 695 mm x 355 mm x 210 mm (27.36“ x 13.98“ x 8.27“) 26000.HA / ACC1284 „Heatable Application“: 695 mm x 355 mm x 240 mm (27.36“ x 13.98“ x 9.45“) glass plate: 553 mm x 300 mm x 15 mm (21.77“ x 11.81“ x 0.59“)
Weight	2600.A: ≈20 kg (≈44.1 lbs) 2600.HA / ACC1284 „Heatable Application“: ≈24 kg (≈52.9 lbs) glass plate only: 6.4 kg (14.1 lbs)
Application length	up to ≈400 mm (≈15.75“)
Application width	up to 300 mm (11.81“)
Power supply	100 V - 240 V, 50 Hz - 60 Hz
Warranty	2 years
