ZRP 6030+ Retroreflectometer

Portable handheld retroreflectometer for determination of the night visibility (coefficient of luminous intensity R and RI) of road studs, ambient temperature (°C/°F) as well as relative humidity (rH %)

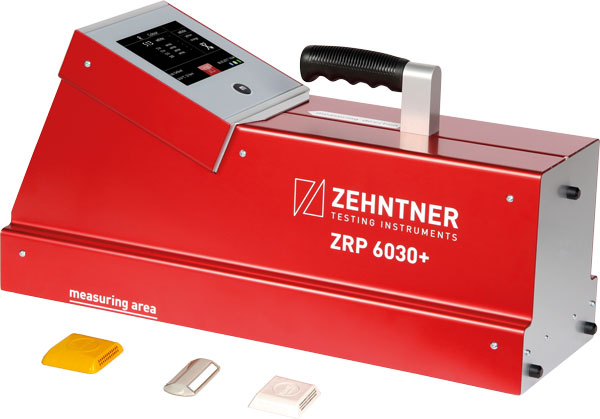

For all types of retroreflective road studs
5.7” high resolution colour touchscreen with excellent visibility under all light conditions
Usable at any time of the day or night
User friendly, multilingual user interface
Measuring system with high long-term stability ensures constant measuring accuracy and thus reliable measuring results; automatic self-diagnosis avoids mismeasurements
Factory calibration traceable to the independent Swiss Federal Institute of Metrology METAS

Click here to request a quotation for this product. If possible, please indicate the desired version.

Versions

Version	Article No.	Description
	6030+.2	ZRP 6030+ Retroreflectometer for road studs; with observation angle 0.2° and illumination angle 1° in accordance with ASTM E1696 Price request
	6030+.3	ZRP 6030+ Retroreflectometer for road studs; with observation angle 0.3° and illumination angle 1° based on EN 1463-2 Price request

Standard delivery

• 1 battery operated retroreflectometer with 5.7“ colour touch screen
• 1 calibration standard
• 1 universal battery charger (100 V - 240 V, 50 Hz - 60 Hz)
• 1 USB-cable for data transfer to computer
• 1 instruction manual
• 1 certificate of manufacturer
• 1 certificate of calibration

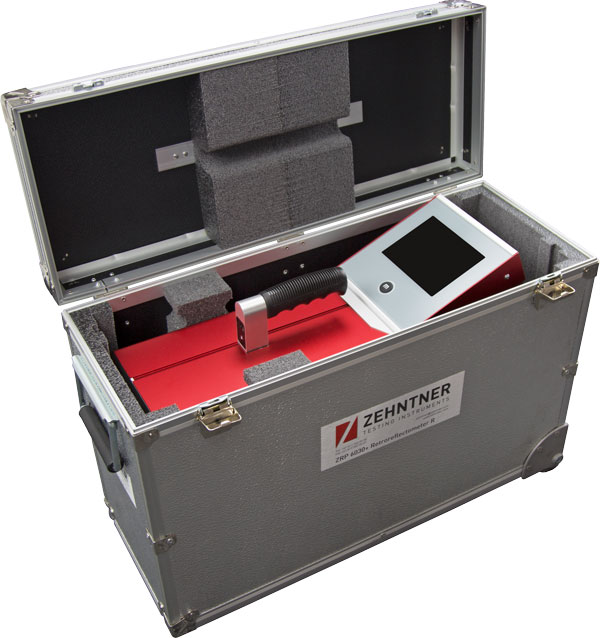

• 1 transportation carrying case with wheels

Features
All relevant data at a single push of a button
Powerful battery; e.g. for 400 measurements per day, the battery has to be recharged only once a month
LED with high life time (over 500’000 measurements), adapted to V(λ)
Automatic stray light supervision and correction

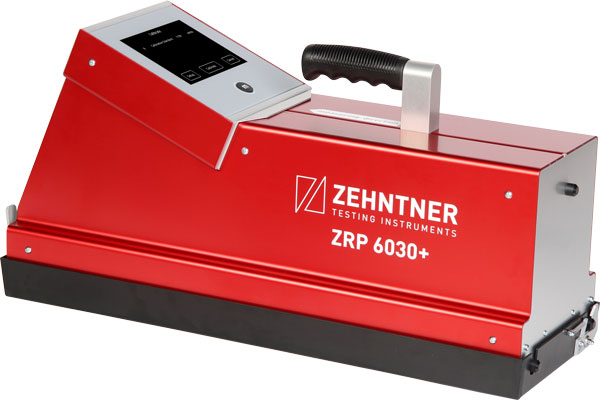

Automatic calibration using the supplied standard

Options

Option	Article No.	Description

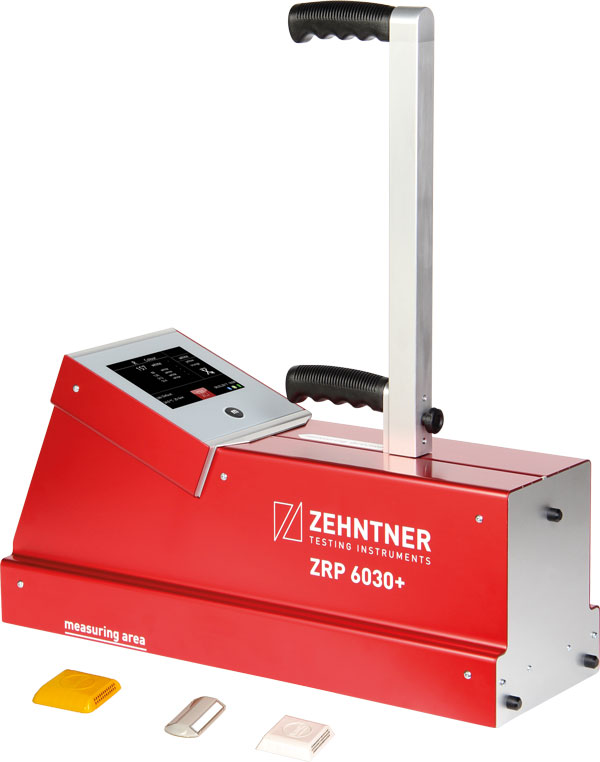

	ACC1097	extended handle with measuring button
	ACC543	WAAS GPS-unit
	ACC227	built-in thermal printer
	ACC1490	portable USB-printer
	ACC1261	inverter 150 W

Technical specification

Measuring area (WxH)	130 mm x 30 mm (5.12" x 1.18“)
Measuring sensor adaption	V(λ)
Measuring range	0 - 2’000 mcd•lx^-1
Repeatability	± 2%
Reproducibility	± 5%
Measuring time	≈1 s
Memory	internal flash memory
Memory size	1 GB
Memory capacity	1'000‘000 measurements
Interfaces	Host USB (type A), Client Mini USB (type B)
Touchscreen display	5.7“ colour TFT (LCD), LED backlight, VGA resolution
Accumulator	Li-Ion 14.4 V / 6.5 Ah
Operating temperature	-10°C - +50°C (14°F - 122°F), non condensing
Storage temperature	-20°C - +60°C (-4°F - 140°F)
Material housing	anodised aluminium
Dimensions (LxWxH)	560 mm x 190 mm x 280 mm (22.05" x 7.48" x 11.02")
Dimensions road studs	max. 140 mm x 160 mm x 60 mm (max. 5.51" x 6.30" x 2.36“)
Weight	8.6 kg (18.96 lbs)
Warranty	2 years
