ZRM 6014 Retroreflectometer RL/Qd

Portable handheld top class retroreflectometer for determination of night visibility (R_L) and day visibility (Qd) for all types of road markings as well as ambient temperature
(°C/°F) and relative humidity (rH %) combined in one compact instrument
5.7“ high resolution colour touchscreen with excellent visibility under all lighting conditions
Fold-away telescopic handle and wheels for the first time included in the standard delivery of a retrometer for easy field and laboratory operation
Ultrafast retroreflection measurement (R_L and Qd) in about 2 seconds
Innovative options to customize the reflectometer to personal requirements such as integrated 5-megapixel camera, WAAS GPS-unit, compass and level-meter and various printer versions
The ZRM 6014 Retroreflectometer is in accordance with EN 1436 (R_L/Qd),
ASTM E1710 (R_L), ASTM E2302 (Qd), ASTM E2177 (R_L wet)
Factory calibration traceable to the independent Swiss Federal Institute of Metrology METAS
Approved by the accredited association StrAus-Zert, Germany (test No. 0913-2010-06)

Click here to request a quotation for this product.

New high resolution camera for ZRM 6014 - click here for more information

Version	Article No.	Description
	6014	ZRM 6014 Retroreflectometer R_L/Qd Price request

Standard delivery

Standard delivery
	1 battery operated retroreflectometer with 5.7" colour touch-screen, extendable fold-away handle and fixed mounted wheels
	1 calibration standard
	1 universal battery charger (100 V to 240 V, 50 Hz to 60 Hz)
	1 mapping and data analysis software "MappingTools"
	1 USB-cable for data transfer to computer
	1 instruction manual
	1 quick guide
	1 certificate of manufacturer
	1 certificate of calibration

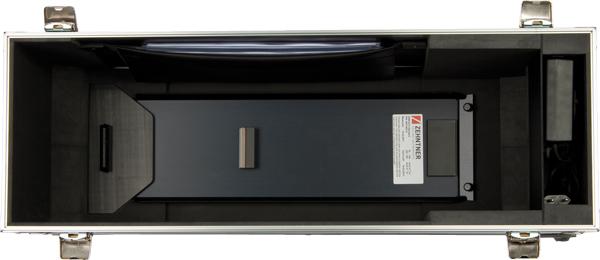

	1 carrying case with wheels

Features of standard delivery
	Top quality precision reflectometer with sturdy aluminium housing meets highest demands.
	Easy to use due to large, well-arranged touch-screen, readable under all lighting conditions.

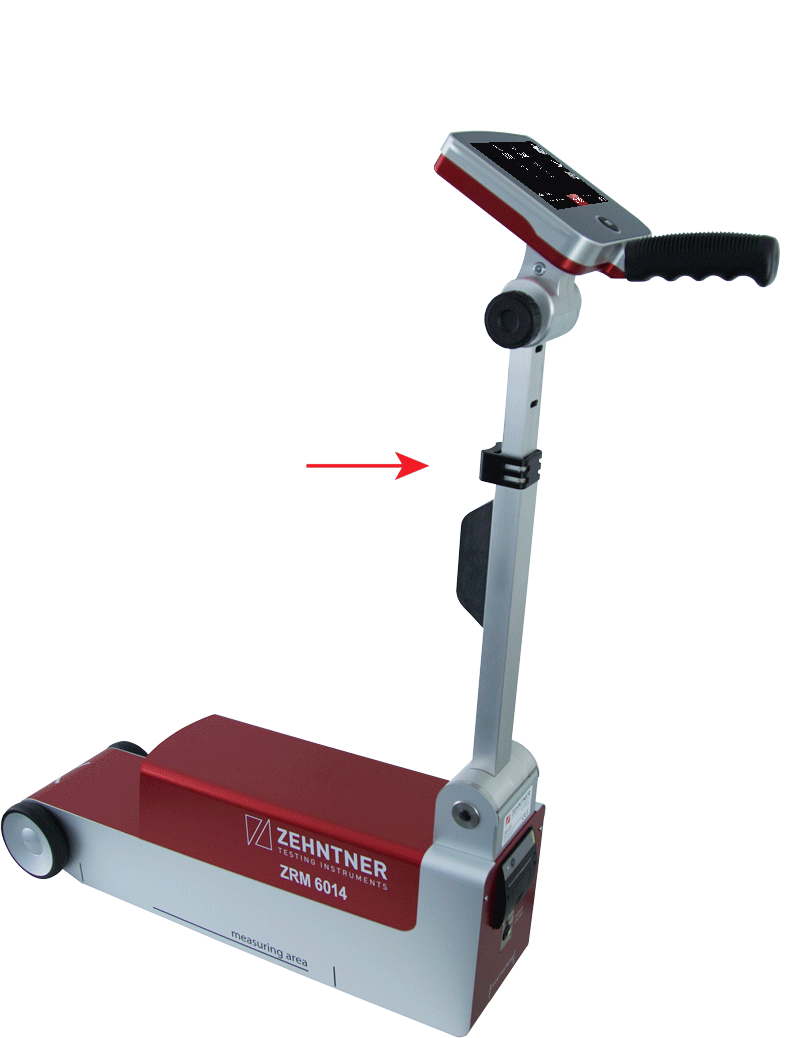

	Extendable fold-away telescopic handle and wheels for comfortable and ergonomic field operation.
	Comfortable and easy use in laboratories by means of the fold-away telescopic handle with pivoting display.
	Integrated wet-timer (stop watch) carries out retroreflection measurement (night vision R_L and/or day vision Qd) automatically after expiry of the set time.
	Automatic stray light supervision and compensation, particularly important for retroreflection measurement of profiled markings.
	Through V(λ) adaptation road markings of all colours can be measured without recalibrating the retroreflectometer.
	Ultrafast retroreflection measurement in about 2 seconds for R_L and Qd; single R_L or Qd in about 1 second.
	Intelligent, easy-to-use menu navigation in several languages.
	In the interval mode continuous retroreflectivity measurements are taken. This mode can be used e.g. to define the performance of the retroreflection of a road marking in dependence on the effluent water at wet measurements.
	Intelligent calibration: automatic zero, R_L and Qd calibration at the touch of a button.
	Measurement of ambient temperature and relative humidity.
	Multiple retroreflection measurements with continuously updated average; additionally each single measurement is stored.
	Easy management of the measuring data in the instrument‘s archive. Sorting by date, job, user or measurements with pictures allows fast location of the required data.
	Data transfer to printers or USB flash drives (memory stick) within seconds using the built-in USB-interface.
	Easy evaluation and export to Microsoft Excel through the included mapping and data analysis software e "MappingTools".

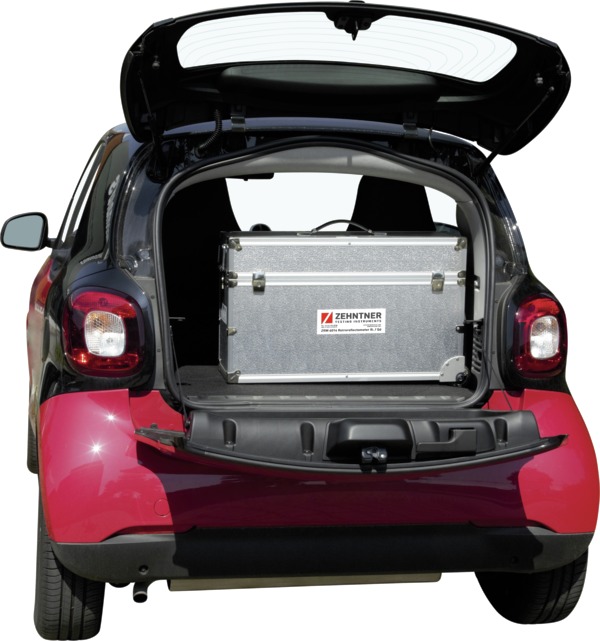

	Compact dimensions and low weight for easy transportation.
	The precision retrometer device is CE approved and in accordance with RoHS requirements.
	In accordance with the standards ASTM E1710 (R_L), ASTM E2177 (R_L wet), ASTM E2302 (Qd) and EN 1436 (R_L and Qd).

Options

Option	Article No.	Description
	ACC1415	integrated 5-megapixel camera
	ACC541	compass and level-meter
	ACC543	WAAS GPS-unit
	ACC227	built-in thermal printer
	ACC1490	portable USB-printer
	ACC1261	inverter 150 W to be plugged into the car cigarette lighter
	ACC175	2nd calibration standard R_L/Qd measured by Zehntner incl. certificate of calibration

Features of options
	The integrated 5-megapixel camera takes pictures of the road marking for additional visual evaluation of road markings.
	The data of the compass and level-meter deliver additional information to the retroreflection measuring values.
	If the ZRM 6014 is equipped with a WAAS GPS unit, it is possible to display the measurement in the included mapping and data analysis software "MappingTools".
	Optional built-in thermal printer or portable USB-printer for easy printouts directly on site.

Technical specification

Equivalent observation distance	30 m, according to CEN-geometry
Observation angle	EN 1436 & ASTM E2302: 2.29°, ASTM E1710: 1.05°
Illumination angle R_L	EN 1436: 1.24°, ASTM E1710: 88.76°
Illumination angle Qd	diffuse
Measuring sensor adaption	V(λ)
Measuring area (WxL)	52 mm x 218 mm (2.05" x 8.58“)
Measuring range (R_L)	0 - 4’000 mcd•m^-2•lx^-1
Measuring range (Qd)	0 - 400 mcd•m^-2•lx^-1
Measuring range profiled markings	up to 12 mm (0.47“)
Repeatability	± 2 %
Reproducibility	± 5 %
Measuring time R_L/Qd without pictures	≈2 s
Measuring time single without pictures	≈1 s
Memory	internal flash memory
Memory size	1 GB
Memory capacity	1'000‘000 measurements without pictures
Interface	Host USB (type A), Client Mini USB (type B)
Touchscreen display	5.7“ colour TFT (LCD), LED backlight, VGA resolution
Pictures (resolution / format)	600 x 800 px, 1200 x 1600 px or 2592 x 1944 px, jpg
Accumulator	Li-Ion 14.4 V / 6.5 Ah
Operating temperature	-10°C - +50°C (14°F - 122°F), non condensing
Storage temperature	-20°C - +60°C (-4°F - 140°F)
Material housing	anodised aluminium
Dimensions (LxWxH)	658.5 mm x 190 mm x 408.5 mm (25.9" x 7.5" x 16.1")
Weight	7.6 kg (16.76 lbs)
Standards	EN 1436 (R_L/Qd), ASTM E1710 (R_L), ASTM E2302 (Qd), ASTM E2177 (R_L wet)
Approval	StrAus-Zert, Germany (test No.: 0913-2010-06)
Warranty	2 years
