ZRS 6060 Retroreflectometer

New generation of ergonomic retroreflectometer for determination of night visibility (coefficient of retroreflection R_A and R’) of traffic signs, safety garments and other reflective materials with measurement of three different observation angles at the same time
The very first retroreflectometer with LED illumination system and with a 3.5” high resolution colour touchscreen with adjustable display inclination for excellent visibility under all light conditions also in bright sunlight
Innovative options to customize the reflectometer to personal requirements: integrated
5-megapixel camera, WAAS GPS-unit, holster, handles and many more
For all kinds of retroreflective materials and colours with automatic colour indication
Continously updated average value; each single measurement is stored additionally
Measurements can be evaluated with the included mapping and data analysis software “MappingTools”
Easy to operate with polyglot menu navigation
Sturdy construction and ergonomic design
Factory calibration traceable to the independent Swiss Federal Institute of Metrology METAS. The certificate of calibration is included in the standard delivery

Click here to request a quotation for this product. If possible, please indicate the desired version.

Versions

Versions	Article No.	Description
	6060.ASTM	ZRS 6060 Retroreflectometer with illumination angle ß -4° and observation angle α 0.2°, 0.5° and 1° Price request
	6060.CD	ZRS 6060 Retroreflectometer with illumination angle ß 5° and observation angle α 0.2°, 0.33°, 0.5° Price request
	6060.DE	ZRS 6060 Retroreflectometer with illumination angle ß 5° and observation angle α 0.2°, 0.33°, 1° Price request
	6060.EN	ZRS 6060 Retroreflectometer with illumination angle ß 5° and observation angle α 0.2°, 0.33°, 2° Price request
	6060.CEN	ZRS 6060 Retroreflectometer with illumination angle ß 5° and observation angle α 0.33°, 0.5°, 1° Price request
Special customer versions, please choose 3 observation angles α:
	6060.A.S	ZRS 6060 Retroreflectometer with illumination angle ß -4° and 3 observation angles α of 0.2°, 0.33°, 0.5°, 1°, 1.5° or 2° Price request
	6060.C.S	ZRS 6060 Retroreflectometer with illumination angle ß 5° and 3 observation angles of α 0.2°, 0.33°, 0.5°, 1°, 1.5° or 2° Price request

Standard delivery
	1 battery operated retroreflectometer

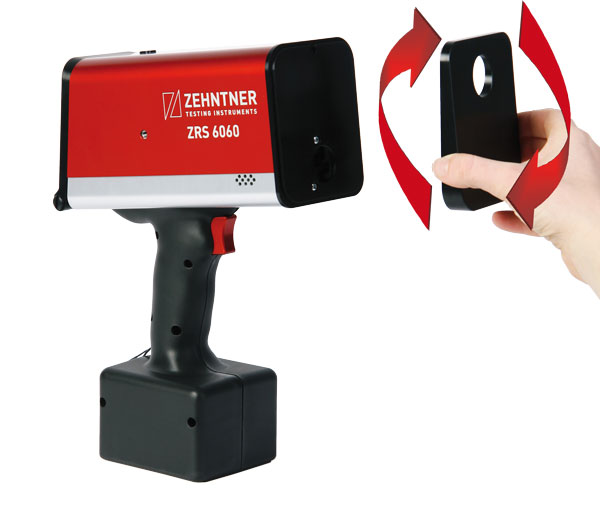

	1 calibration standard / front plate
	1 battery charger (100 V - 240 V, 50 Hz - 60 Hz)
	1 mapping and data analysis software "MappingTools"
	1 USB-cable for data transfer to computer
	1 instruction manual
	1 certificate of manufacturer
	1 certificate of calibration
	1 shoulder strap
	1 shoulder bag

Option	Article No.	Description
	ACC797	WAAS GPS-unit
	ACC1418	5-megapixel camera
	ACC802	holster
	ACC1490	portable USB-printer
	ACC798	handle 1.2 m (47.2“)
	ACC799	extendable handle from 1.7 m to 3 m (66.9"- 118.1“)
	ACC800	extendable handle from 2.2 m to 4 m (86.6"-157.5“)
	ACC804	adapter for illumination angle 20°
	ACC805	adapter for illumination angle 30°
	ACC806	adapter for illumination angle 40°
	ACC918	barcode reader
	ACC1261	inverter 150 W to be plugged into the car cigarette lighter

Versions	Illumination angle ß₁	Observation angle α	Application
6060.ASTM	-4°	0.2°, 0.5°, 1°	traffic signs, safety garments and license plates
6060.CD	5°	0.2°, 0.33°, 0.5°	traffic signs, safety garments, license plates and contour safety markings
6060.DE	5°	0.2°, 0.33°, 1°	traffic signs, safety garments, license plates and contour safety markings
6060.EN	5°	0.2°, 0.33°, 2°	traffic signs, safety garments, license plates and contour safety markings
6060.CEN	5°	0.33°, 0.5°, 1°	traffic signs, license plates and contour safety markings
6060.A.S	-4°	0.2°, 0.33°, 0.5°, 1°, 1.5° or 2° *	depending on chosen specifications
6060.C.S	5°	0.2°, 0.33°, 0.5°, 1°, 1.5° or 2° *	depending on chosen specifications
*Please choose 3 observation angles a

Illumination angle ß₁	-4°				5°
Illumination angle ß₂	0°				0°
Observation angle α	0.2°	0.33°	0.5°	1°	0.2°	0.33°	1°	1.5°	2°
ASTM E1709	•
ASTM E1809 (withdrawn 2010)	•
ASTM E2540			•
CUAP 01.06/04	•	•	•	•	•	•	•	•	•
DIN 67520					•	•	•	•	•
EN 12899-1					•	•			•
BS EN 12899 Annex A					•	•	•	•
ISO 20471					•	•**	•**	•**
MUTCD	•
**If also equipped with observation angle 0.2°

Host USB (type A), Client Mini USB (type B)

Measuring area	Ø 25 mm (0.98“)
Measuring sensor adaption	V(λ)
Measuring range	0 - 2‘000 cd•lx^-1•m^-2
Measuring time	≈3 s
Memory	internal flash memory
Memory size / capacity	1 GB ≈ 1‘000‘000 measurements without pictures
Interface	Host USB (type A / Typ A), Client Mini USB (type B / Typ B)
Touchscreen display	3.5“ colour TFT (LCD), LED backlight, HVGA resolution
Pictures (resolution / format)	600 x 800 px, 1200 x 1600 px or 2592 x 1944 px, jpg
Battery	Li-Ion 14.4 V / 6.5 Ah
Operating conditions	-10 - +50°C (14 - +122°F), non condensing ACC918 barcode reader: -10 - +45° C (14 - 113° F), 20 - 85 % rH
Storage conditions	-20 - +55°C (-4 - +131°F) ACC918 barcode reader: 20 - 90 % rH
Material housing	anodised aluminium
Dimensions (LxWxH)	220 mm x 85 mm x 290 mm (8.66" x 3.35" x 11.42“)
Weight	1.9 kg (4.19 lbs) net without options
Warranty	2 years

Illumination angle ß₁	-4°				5°
Illumination angle ß₂	0°				0°
Observation angle α	0.2°	0.33°	0.5°	1°	0.2°	0.33°	1°	1.5°	2°
ASTM E1709	•
ASTM E1809 (withdrawn 2010)	•
ASTM E2540			•
CUAP 01.06/04	•	•	•	•	•	•	•	•	•
DIN 67520					•	•	•	•	•
EN 12899-1					•	•			•
BS EN 12899 Annex A					•	•	•	•
ISO 20471					•	•**	•**	•**
MUTCD	•
**If also equipped with observation angle 0.2°
